UNEQUAL ANGLE STEEL 30x20 - 200x100 mm

Technical characteristics for angle steel:

Manufacturing dimensions: according to DIN 1029 / EN 10056-1
Material quality for angle steel: according to DIN 17100 / EN 10025
Manufacturing tolerances: according to EN 10056-2.
The standard defines shape and dimension tolerances for equal and unequal leg angles, with square or rounded corners.
Quality certificate for unequal leg angle: according to EN 10204 – type 2.2 or 3.1B
Surface appearance: according to EN 10163-3

Standard Manufacturing / Delivery Dimensions

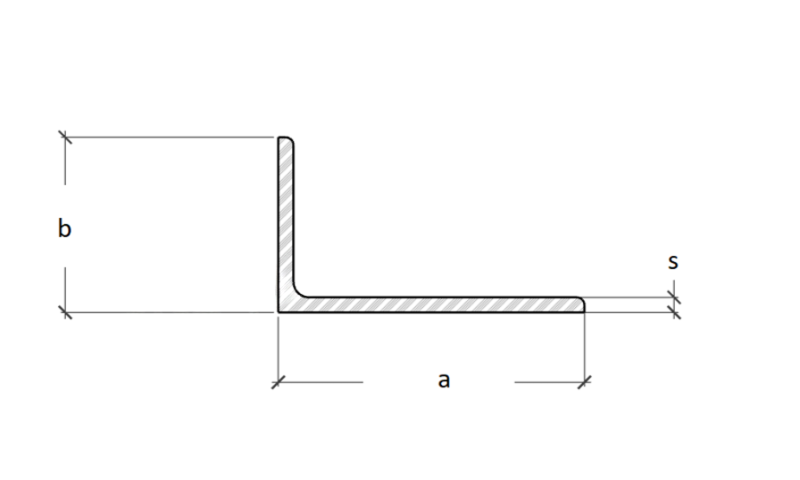

Leg Width (a x a)	Thickness (s)	Weight / ml	Radius r1	Radius r2	Section Area	Section Modulus	Axes	Moment of Inertia			Radius of Gyration
Leg Width (a x a)	Thickness (s)	Weight / ml	Radius r1	Radius r2	Section Area	Section Modulus	Cx = Cy	x-x = y-y	u-u	v-v	x-x = y-y	u-u	v-v
mm	mm	kg	mm	mm	cm²	cm³	cm	cm⁴	cm⁴	cm⁴	cm	cm	cm
30 x 20	3	1.12	4.0	2.0	1.43	0.99	0.50	1.25	0.437	-0.424	1.43	0.256	0.935	0.553
	4	1.46	4.0	2.0	1.86	1.03	0.54	1.59	0.553	-0.53	1.81	0.33	0.925	0.546
40 x 20	4	1.77	4.0	2.0	2.26	1.47	0.48	3.59	0.596	-0.806	3.8	0.393	1.26	0.514
40 x 25	4	1.93	4.0	2.0	2.46	1.36	0.62	3.89	1.16	-1.21	4.35	0.701	1.26	0.688
45 x 30	4	2.25	4.5	2.3	2.86	1.48	0.74	5.75	2.04	-1.98	6.61	1.19	1.42	0.845
50 x 30	5	2.96	5.0	2.5	3.78	1.73	0.74	9.36	2.51	-2.75	10.3	1.54	1.57	0.639
60 x 30	5	3.37	6.0	3.0	4.29	2.15	0.68	15.6	2.6	-3.54	16.5	1.7	1.9	0.779
60 x 40	5	3.76	6.0	3.0	4.79	1.96	0.97	17.2	6.11	-5.91	19.7	3.54	1.89	1.13
60 x 40	6	4.46	6.0	3.0	5.68	2.00	1.01	20.1	7.12	-6.88	23.1	4.16	1.88	1.12
65 x 50	5	4.35	6.0	3.0	5.54	1.99	1.25	23.2	11.9	-9.72	28.8	6.32	2.05	1.47
70 x 50	6	5.41	7.0	3.5	6.89	2.23	1.25	33.4	14.2	-12.6	39.7	7.92	2.2	1.43
75 x 50	6	5.65	7.0	3.5	7.19	2.44	1.21	40.5	14.4	-14	46.6	8.36	2.37	1.42
75 x 50	8	7.39	7.0	3.5	9.41	2.52	1.29	52	18.4	-17.7	59.6	10.8	2.35	1.40
80 x 40	6	5.41	7.0	3.5	6.89	2.85	0.88	44.9	7.59	-10.3	47.6	4.93	2.55	1.05
80 x 40	8	7.07	7.0	3.5	9.01	2.94	0.96	57.6	9.61	-13	60.9	6.34	2.53	1.03
80 x 60	7	7.36	8.0	4.0	9.38	2.51	1.52	59	28.4	-23.8	72	15.4	2.51	1.74
100 x 50	6	6.84	8.0	4.0	8.71	3.51	1.05	89.9	15.4	-20.9	95.4	9.92	3.21	1.33
100 x 50	8	8.97	8.0	4.0	11.4	3.60	1.13	116	19.7	-26.7	123	12.8	3.19	1.31
100 x 65	7	8.77	10.0	5.0	11.2	3.23	1.51	113	37.6	-37.5	128	22	3.17	1.83
	8	9.94	10.0	5.0	12.7	3.27	1.55	127	42.2	-42.2	144	24.8	3.16	1.83
	9	11.1	10.0	5.0	14.1	3.22	1.59	141	46.7	-46.8	166	27.37	3.15	1.82
	10	12.3	10.0	5.0	15.6	3.36	1.63	154	51	-50.8	175	30.2	3.14	1.81
	12	14.5	10.0	5.0	18.5	3.44	1.71	179	59.1	-58.7	203	35.2	3.12	1.79
	14	16.7	10.0	5.0	21.3	3.56	1.79	203	66.8	-66.2	230	39.7	3.10	1.77
100 x 75	8	10.6	10.0	5.0	13.5	3.10	1.87	133	64.1	-53.8	162	34.6	3.14	2.18
	10	13	10.0	5.0	16.6	3.19	1.95	162	77.6	-65.1	197	42.2	3.12	2.16
	12	15.4	10.0	5.0	19.7	3.27	2.03	189	90.2	-75.3	230	49.5	3.10	2.14
	14	17.8	10.0	5.0	22.7	3.35	2.11	216	102	-85.3	262	56.6	3.09	2.12
120 x 80	8	12.2	11.0	5.5	15.5	3.83	1.87	226	80.8	-78.2	260	46.6	3.82	2.28
	10	15	11.0	5.5	19.1	3.92	1.95	276	98.1	-95	317	56.8	3.80	2.26
	12	17.8	11.0	5.5	22.7	4.00	2.03	323	114	-111	370	66.7	3.77	2.24
125 x 75	8	12.2	11.0	5.5	15.5	4.14	1.68	247	67.6	-74.2	274	40.9	4.00	2.09
	9	13.6	11.0	5.5	17.3	4.18	1.72	275	75.0	-82.7	305	45.2	3.98	2.08
	10	15.0	11.0	5.5	19.1	4.23	1.76	302	82.1	-90.1	334	49.9	3.97	2.07
	12	17.8	11.0	5.5	22.7	4.31	1.84	354	95.5	-105	391	58.5	3.95	2.05
130 x 90	10	16.6	11.0	5.0	21.2	4.26	2.19	360	142	-131.6	422	79.9	4.12	2.59
130 x 90	12	19.7	12.0	6.0	25.1	4.24	2.26	420	165	-152.6	492	93.3	4.09	2.56
135 x 65	8	12.2	11.0	5.5	15.5	4.78	1.34	291	45.2	-64.1	307	29.4	4.34	1.71
135 x 65	10	15.0	11.0	5.5	19.1	4.88	1.42	356	54.7	-77.6	375	35.9	4.31	1.69
150 x 75	9	15.4	12.0	6.0	19.6	5.26	1.57	455	77.9	-106	483	50.2	4.82	1.99
	10	17.0	11.0	5.5	21.6	5.32	1.61	501	85.8	-117	532	55.3	4.81	1.99
	12	20.2	11.0	5.5	25.7	5.41	1.69	589	99.9	-136	624	64.9	4.79	1.97
	15	24.8	11.0	5.5	31.6	5.53	1.81	713	120	-161	754	78.8	4.75	1.94
150 x 90	10	18.2	12.0	6.0	23.2	5.00	2.04	533	146	-160	591	88.3	4.80	2.51
	12	21.6	12.0	6.0	27.5	5.08	2.12	627	171	-188	694	104	4.77	2.49
	15	26.6	12.0	6.0	33.9	5.21	2.23	761	205	-225	841	126	4.74	2.46
150 x 100	10	19.0	12.0	6.0	24.2	4.81	2.34	553	198	-192	637	114	4.78	2.87
150 x 100	12	22.5	12.0	6.0	28.7	4.90	2.42	651	233	-225	749	134	4.76	2.85
200 x 100	10	23.0	15.0	7.5	29.2	6.93	2.01	1219	210	-285	1294	135	6.46	2.68
	12	27.3	15.0	7.5	34.8	7.03	2.10	1440	247	-336	1528	159	6.43	2.67
	15	33.7	15.0	7.5	43.0	7.16	2.22	1758	299	-406	1864	194	6.40	2.64
	18	40.1	15.0	7.5	51.0	7.26	2.32	2060	349	-474	2180	226	6.36	2.62
