PC52 REBAR, BAR AND COIL

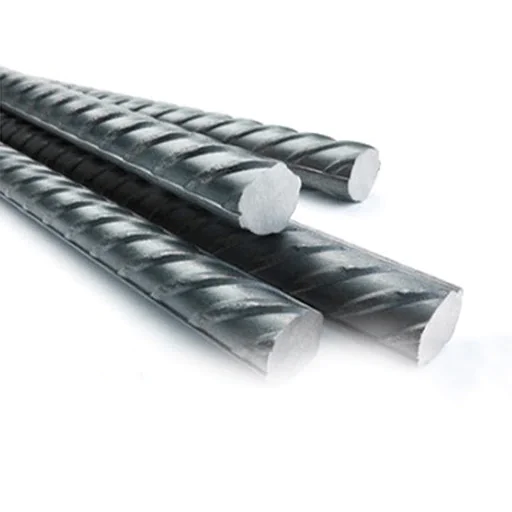

PC52 Reinforcing Steel is a periodic-profile steel with longitudinal ribs placed diametrically opposite, maintaining consistent dimensions along its length, and with helical ribs spaced evenly and inclined at 55–65 degrees relative to the longitudinal ribs. PC52 reinforcing steel is used for reinforcing concrete elements and structures in both civil and industrial construction (columns, belts, beams, prefabricated elements).
We supply PC52 with the following specifications:
Nominal diameter: 6–22 mm (coil) / 10–40 mm (bar)
Yield strength: 355 N/mm² / 345 N/mm² / 335 N/mm²
Tensile strength: 510 N/mm²
Minimum elongation at break: 20%
Standard Manufacturing / Delivery Dimensions
| Nominal Diametermm | Permissible Deviationmm | Section Areacm2 | Linear Masskg/m |
| 6 | ±0.3-0.5 | 0.283 | 0.222 |
| 8 | ±0.3-0.5 | 0.503 | 0.395 |
| 10 | ±0.3-0.5 | 0.785 | 0.617 |
| 12 | ±0.3-0.5 | 1.130 | 0.888 |
| 14 | ±0.3-0.5 | 1.540 | 1.210 |
| 16 | ±0.3-0.5 | 2.010 | 1.580 |
| 16 | ±0.4-0.5 | 2.010 | 1.580 |
| 18 | ±0.4-0.5 | 2.540 | 1.990 |
| 20 | ±0.4-0.5 | 3.140 | 2.470 |
| 22 | ±0.4-0.5 | 3.800 | 2.984 |
| 25 | ±0.4-0.5 | 4.910 | 3.850 |
| 28 | ±0.4-0.75 | 6.160 | 4.840 |
| 32 | ±0.4-0.75 | 8.040 | 6.310 |
| 36 | ±0.4-0.75 | 10.20 | 7.990 |
| 40 | ±0.4-0.75 | 12.60 | 9.860 |
