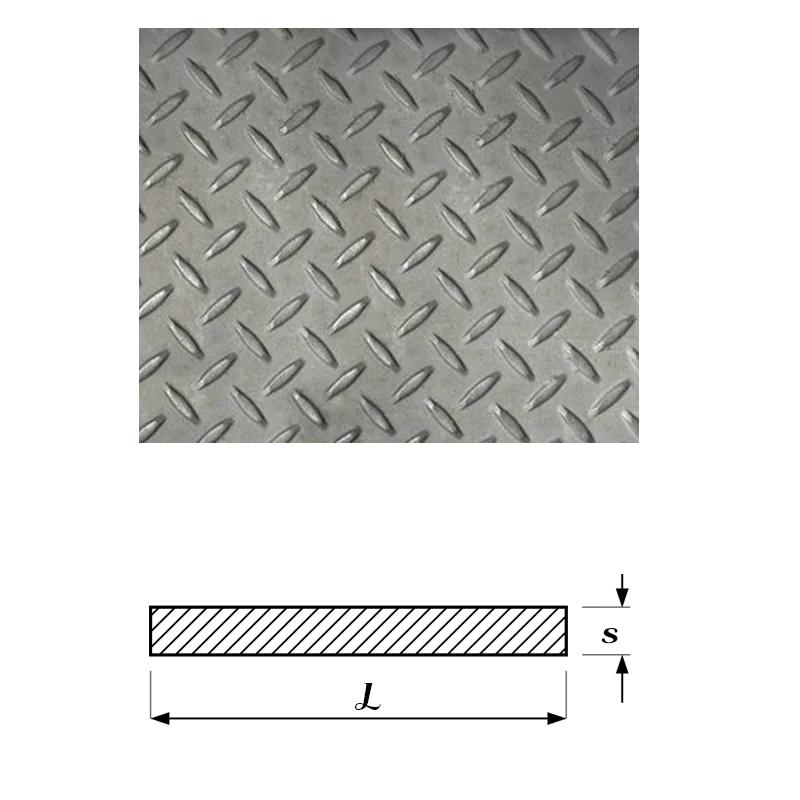

CHECKERED PLATE WITH DIMENSIONS FROM 3 - 10 MM
Technical characteristics:
Manufacturing tolerances according to:
EN 10051. The standard specifies the tolerances on dimensions and shape for uncoated, continuously hot-rolled strips and sheets, with widths of a maximum of 2,200 mm, made of non-alloy and alloy steels.
Steel grade: according to EN 10025 / DIN 17100 – S235JR
Quality certificate: type 2.2 or 3.1B according to EN 10204
Standard Manufacturing / Delivery Dimensions
| Weight | |||||
| Thickness (s) mm | Dimensions (mm) | Kg/sqm | Kg/sheet | ||
| 3.00 | 1500×6000 | 25.50 | 229.50 | ||
| 4.00 | 1500×6000 | 34.00 | 306.00 | ||
| 5.00 | 1500×6000 | 42.50 | 382.50 | ||
| 6.00 | 1500×6000 | 51.00 | 459.00 | ||
| 8.00 | 1500×6000 | 68.00 | 612.00 | ||
| 10.00 | 1500×6000 | 85.00 | 765.00 | ||
