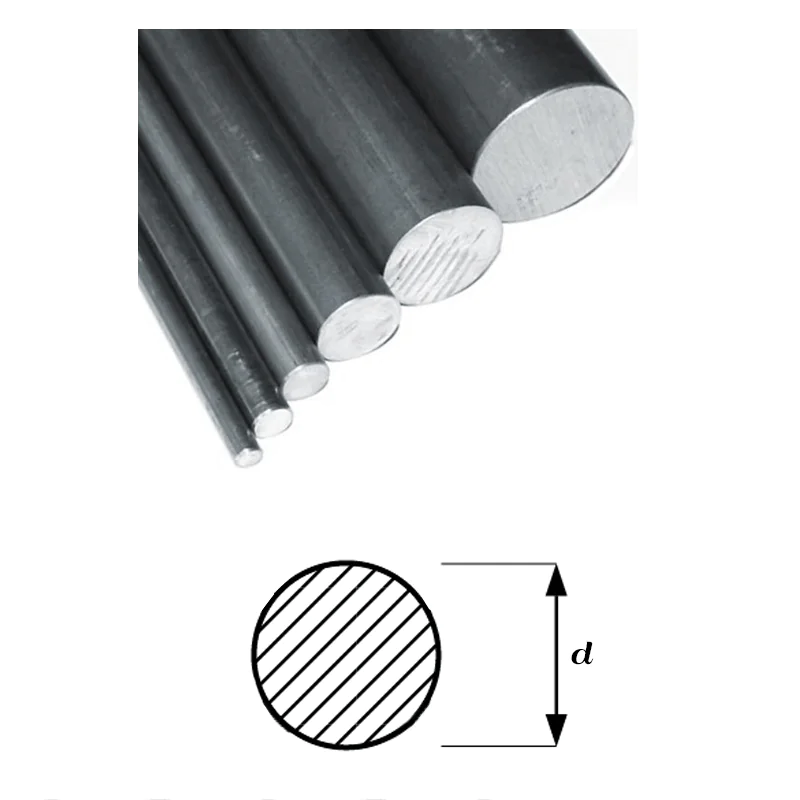

ROUND STEEL WITH DIMENSIONS FROM 8 TO 250 MM
Technical characteristics of round steel:
Manufacturing tolerances according to: EN 10060. The standard specifies the dimensions and tolerances on dimensions and shape of hot-rolled round steel for general and special applications.
Round steel surface appearance: according to EN 10221.
Round steel quality certificate: according to EN 10204 – type 2.2 or 3.1B.
We distribute round steel for:
construction: S235, S275, S355, E295, E335;
quenching and tempering alloy: 42CrMo4, 34CrNiMo6, 41Cr4;
case hardening alloy: 16MnCr5, 20MnCr5, 17CrNiMo6, 18CrNiMo6-7.
Standard Manufacturing / Delivery Dimensions
| Diameter(d) mm | Weight kg/ml | Diameter(d) mm | Weight kg/ml | |
| 8 | 0.40 | 56 | 19.34 | |
| 9 | 0.50 | 60 | 22.20 | |
| 10 | 0.62 | 65 | 26.05 | |
| 11 | 0.75 | 70 | 30.21 | |
| 12 | 0.89 | 75 | 34.68 | |
| 13 | 1.04 | 80 | 39.46 | |
| 14 | 1.21 | 85 | 44.55 | |
| 15 | 1.39 | 90 | 49.94 | |
| 16 | 1.58 | 92 | 52.18 | |
| 17 | 1.78 | 95 | 55.64 | |
| 18 | 2.00 | 100 | 61.65 | |
| 19 | 2.23 | 105 | 67.97 | |
| 20 | 2.47 | 110 | 74.60 | |
| 22 | 2.98 | 115 | 81.54 | |
| 24 | 3.55 | 120 | 88.78 | |
| 25 | 3.85 | 125 | 96.33 | |
| 26 | 4.17 | 130 | 104.20 | |
| 28 | 4.83 | 135 | 112.36 | |
| 30 | 5.55 | 140 | 120.84 | |
| 32 | 6.31 | 145 | 129.63 | |
| 35 | 7.55 | 150 | 138.72 | |
| 36 | 7.99 | 160 | 157.83 | |
| 38 | 8.90 | 170 | 178.20 | |
| 40 | 9.87 | 180 | 199.76 | |
| 42 | 10.88 | 190 | 222.60 | |
| 45 | 12.49 | 200 | 246.62 | |
| 50 | 15.41 | 220 | 298.40 | |
| 55 | 18.65 | 250 | 385.30 |
