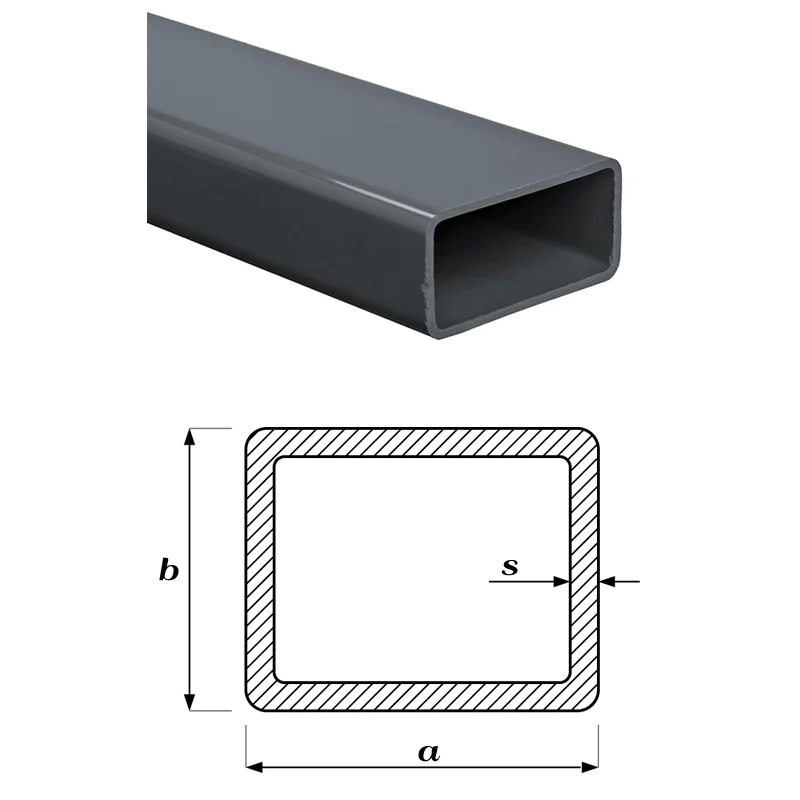

RECTANGULAR TUBE WITH DIMENSIONS FROM 20 x 10 TO 350 x 250 MM
Technical characteristics:
Delivery standards according to EN 10210-1 and EN 10219-1
Manufacturing tolerances according to:
EN 10219 – 2. The standard specifies the tolerances for cold-formed structural hollow sections with circular, square, rectangular, and elliptical cross-sections, manufactured with wall thicknesses up to 40 mm.
EN 10210 – 2. This standard specifies the tolerances, dimensions, and characteristics of hot-finished hollow sections with circular, square, rectangular, and elliptical cross-sections, used in construction.
Material quality: S235JRH, S275JOH, S355J2H
Quality certificate: according to EN 10204 type 2.2 or 3.1B
Manufacturing lengths for rectangular tube: 6 and 12 meters.
Standard Manufacturing / Delivery Dimensions
| Tube | Thickness (s) mm | ||||||||
| 1.5 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | |
| Dimensions (a x b) mm | Kg/ml | ||||||||
| 20 x 10 | 0.64 | 0.74 | |||||||
| 30 x 10 | 0.87 | 1.11 | |||||||
| 30 x 20 | 1.06 | 1.36 | 1.89 | ||||||
| 40 x 20 | 1.30 | 1.68 | 2.36 | ||||||
| 40 x 30 | 1.53 | 2.07 | 2.86 | ||||||
| 50 x 20 | 1.53 | 2.07 | 2.86 | ||||||
| 50 x 30 | 1.77 | 2.31 | 3.30 | 4.20 | |||||
| 50 x 40 | 2.62 | 3.77 | |||||||
| 60 x 20 | 1.77 | 2.31 | 3.30 | 14.20 | |||||
| 60 x 30 | 2.62 | 3.77 | |||||||
| 60 x 40 | 2.93 | 4.25 | 5.45 | 6.56 | |||||
| 70 x 30 | 2.93 | 4.25 | 5.45 | 6.56 | |||||
| 70 x 50 | 3.56 | 5.19 | 6.71 | 8.13 | |||||
| 80 x 20 | 2.93 | ||||||||
| 80 x 40 | 3.56 | 5.19 | 6.71 | 8.13 | |||||
| 80 x 50 | 5.65 | 7.33 | |||||||
| 80 x 60 | 4.19 | 6.13 | 7.97 | 9.70 | 11.30 | ||||
| 100 x 40 | 4.19 | 6.13 | 7.98 | 9.70 | 11.30 | ||||
| 100 x 50 | 6.60 | 8.59 | 10.50 | 12.30 | |||||
| 100 x 60 | 7.07 | 9.22 | 11.30 | 13.20 | 16.40 | ||||
| 100 x 80 | 8.01 | 10.50 | 12.80 | 15.10 | 18.90 | ||||
| 120 x 40 | 7.07 | 9.22 | 11.30 | 13.20 | 16.40 | ||||
| 120 x 60 | 8.01 | 10.50 | 12.80 | 15.10 | 18.90 | ||||
| 120 x 80 | 8.96 | 11.70 | 14.40 | 17.00 | 21.40 | 25.60 | |||
| 120 x 100 | 9.89 | 13.00 | 16.00 | 18.90 | 23.90 | ||||
| 140 x 80 | 9.89 | 13.00 | 16.00 | 18.90 | 23.90 | ||||
| 160 x 80 | 10.80 | 14.20 | 17.50 | 20.70 | 26.40 | 31.80 | 35.80 | ||
| 150 x 100 | 10.83 | 14.90 | 18.30 | 21.70 | 27.70 | 33.40 | |||
| 160 x 100 | 15.50 | 19.12 | |||||||
| 180 x 80 | 15.50 | 19.12 | |||||||
| 180 x 100 | 16.80 | 20.70 | 24.50 | 31.40 | 38.10 | 43.40 | |||
| 200 x 80 | 16.80 | 20.70 | 24.50 | 31.40 | 38.10 | 43.40 | |||
| 200 x 100 | 18.00 | 22.30 | 26.40 | 33.90 | 41.30 | 47.10 | |||
| 200 x 120 | 19.30 | 23.80 | 28.30 | 36.50 | 44.40 | 50.90 | |||
| 250 x 150 | 30.10 | 35.80 | 46.50 | 57.00 | |||||
| 260 x 180 | 33.20 | 39.60 | 51.50 | 63.20 | |||||
| 300 x 100 | 30.10 | 35.80 | 46.50 | 57.00 | |||||
| 300 x 150 | 40.50 | 52.80 | 64.80 | ||||||
| 300 x 200 | 38.00 | 45.20 | 59.10 | 72.70 | |||||
| 350 x 250 | 54.70 | 71.60 | 88.40 | ||||||
