IPE PROFILE WITH DIMENSIONS FROM 80 TO 600 MM
Technical characteristics:
Manufacturing standard: EN 10365
Manufacturing tolerances: according to EN 10034
Steel used: according to DIN 17100 / EN 10025
Surface appearance: according to EN 10163-3, C
Quality certificate: according to EN 10204 – type 2.2 or 3.1B
Standard Manufacturing / Delivery Dimensions
| Designation | Weight | Dimensions (mm) | Section | Section Modulus | |||||||
| kg / ml | cm² | cm³ | |||||||||

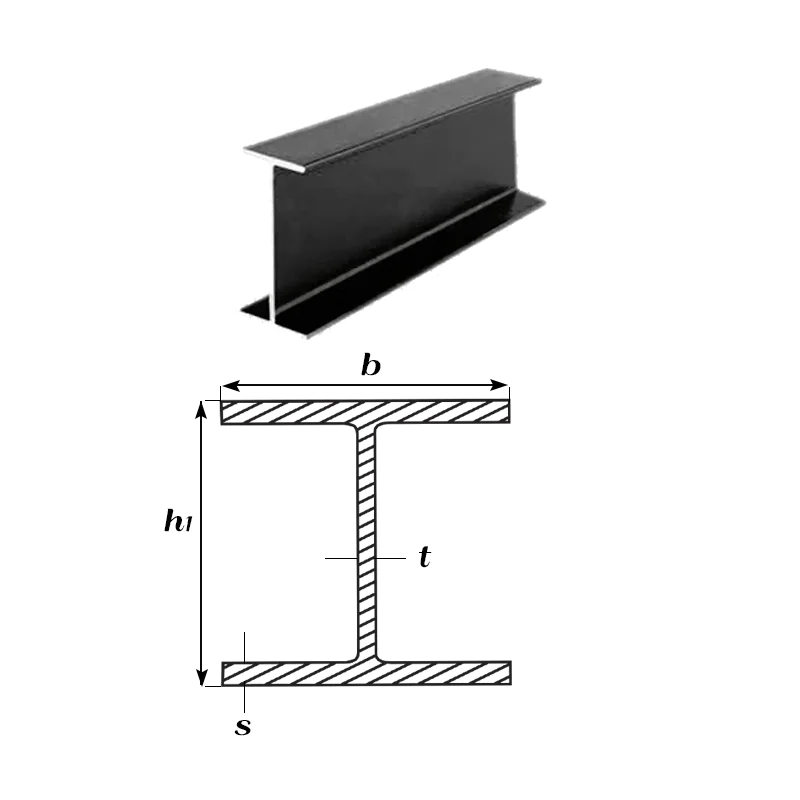

| Theoretical | Commercial | h1 | b | s | t | h2 | h3 | F | Wx | Wy | |
| IPE 80 | 6.0 | 6.2 | 80 | 46 | 3.8 | 5.2 | 69.6 | 59.6 | 7.64 | 20.03 | 3.69 |
| IPE 100 | 8.1 | 8.3 | 100 | 55 | 4.1 | 5.7 | 88.6 | 74.6 | 10.32 | 34.20 | 5.79 |
| IPE 120 | 10.4 | 10.7 | 120 | 64 | 4.4 | 6.3 | 107.4 | 93.4 | 13.21 | 52.96 | 8.65 |
| IPE 140 | 12.9 | 13.2 | 140 | 73 | 4.7 | 6.9 | 126.2 | 112.2 | 16.43 | 77.32 | 12.31 |
| IPE 160 | 15.8 | 16.2 | 160 | 82 | 5.0 | 7.4 | 145.2 | 131.2 | 20.09 | 108.70 | 16.66 |
| IPE 180 | 18.8 | 19.3 | 180 | 91 | 5.3 | 8.0 | 164.0 | 146.0 | 23.95 | 146.30 | 22.16 |
| IPE 200 | 22.4 | 23.0 | 200 | 100 | 5.6 | 8.5 | 183.0 | 159.0 | 28.48 | 194.30 | 28.47 |
| IPE 220 | 26.2 | 26.9 | 220 | 110 | 5.9 | 9.2 | 210.6 | 177.6 | 33.37 | 252.00 | 37.25 |
| IPE 240 | 30.7 | 31.5 | 240 | 120 | 6.2 | 9.8 | 220.4 | 190.4 | 39.12 | 324.30 | 47.27 |
| IPE 270 | 36.1 | 37.0 | 270 | 135 | 6.6 | 10.2 | 249.6 | 219.6 | 45.94 | 428.90 | 62.20 |
| IPE 300 | 42.2 | 43.3 | 300 | 150 | 7.1 | 10.7 | 278.6 | 248.6 | 53.81 | 557.10 | 80.50 |
| IPE 330 | 49.1 | 50.4 | 330 | 160 | 7.5 | 11.5 | 307.6 | 271.0 | 62.61 | 713.10 | 98.52 |
| IPE 360 | 57.1 | 58.6 | 360 | 170 | 8.0 | 12.7 | 334.6 | 298.6 | 72.73 | 903.60 | 122.80 |
| IPE 400 | 66.3 | 68.0 | 400 | 180 | 8.6 | 13.5 | 373.0 | 331.0 | 84.46 | 1156.00 | 146.40 |
| IPE 450 | 77.6 | 80.0 | 450 | 190 | 9.4 | 14.6 | 420.8 | 378.8 | 98.82 | 1500.00 | 176.40 |
| IPE 500 | 90.7 | 93.0 | 500 | 200 | 10.2 | 16.0 | 468.0 | 426.0 | 115.50 | 1928.00 | 214.20 |
| IPE 550 | 106.0 | 109.0 | 550 | 210 | 11.1 | 17.2 | 515.6 | 467.6 | 134.40 | 2441.00 | 254.10 |
| IPE 600 | 122.0 | 125.0 | 600 | 220 | 12.0 | 19.0 | 562.0 | 514.0 | 156.00 | 3069.00 | 307.90 |
