INP PROFILE WITH DIMENSIONS FROM 80 TO 550 MM
Technical characteristics:
Manufacturing dimensions: according to DIN 1025/1
Manufacturing tolerances according to:
EN 10024. The standard establishes the tolerances on dimensions and shape for hot-rolled I-profiles (beams) with tapered flanges.
Steel used: according to DIN 17100 / EN 10025
Surface appearance: according to EN 10163-3, C
Quality certificate: according to EN 10204 – type 2.2 or 3.1B

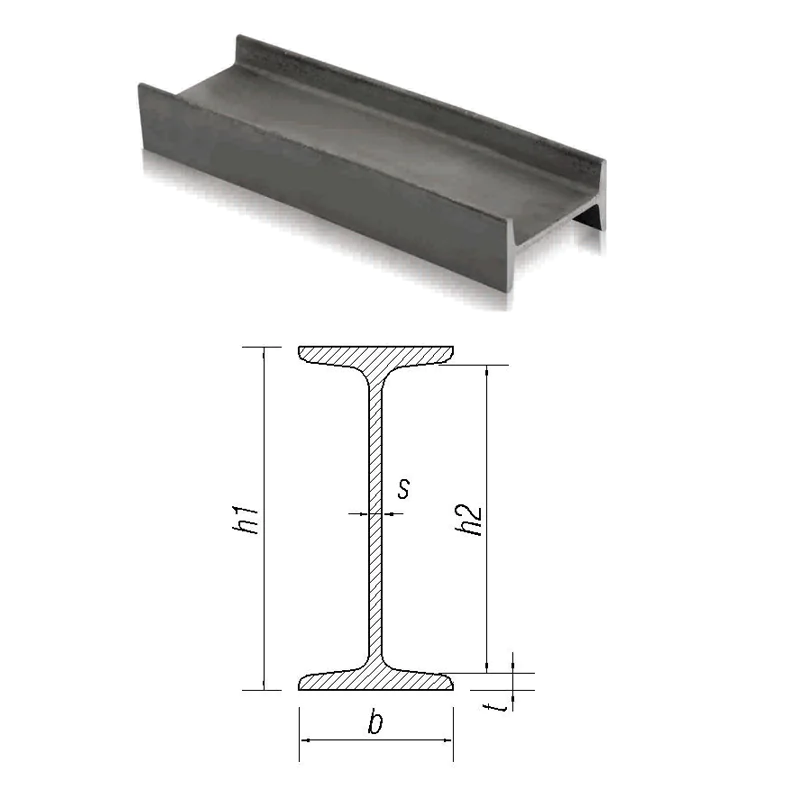

Standard Manufacturing / Delivery Dimensions
| Designation and Profile Dimension | Weight | Dimensions (mm) | Section | Section Modulus | ||||||
| kg / ml | cm² | cm³ | ||||||||
| Theoretical | Commercial | h1 | b | s | t | h2 | F | Wx | Wy | |
| INP 80 | 5.94 | 6.1 | 80 | 42 | 3.9 | 5.9 | 59.0 | 7.58 | 19.5 | 3.00 |
| INP 100 | 8.34 | 8.5 | 100 | 50 | 4.5 | 6.8 | 75.7 | 10.60 | 34.2 | 4.88 |
| INP 120 | 11.1 | 11.5 | 120 | 58 | 5.1 | 7.7 | 92.4 | 14.20 | 54.7 | 7.41 |
| INP 140 | 14.3 | 14.7 | 140 | 66 | 5.7 | 8.6 | 109.1 | 18.30 | 81.9 | 10.70 |
| INP 160 | 17.9 | 18.5 | 160 | 74 | 6.3 | 9.5 | 125.8 | 22.80 | 117.0 | 14.80 |
| INP 180 | 21.9 | 22.5 | 180 | 82 | 6.9 | 10.4 | 142.4 | 27.90 | 161.0 | 19.80 |
| INP 200 | 26.2 | 27.0 | 200 | 90 | 7.5 | 11.3 | 159.1 | 33.40 | 214.0 | 26.00 |
| INP 220 | 31.1 | 32.0 | 220 | 98 | 8.1 | 12.2 | 175.8 | 39.50 | 278.0 | 33.10 |
| INP 240 | 36.2 | 37.0 | 240 | 106 | 8.7 | 13.1 | 192.5 | 46.10 | 354.0 | 41.70 |
| INP 260 | 41.9 | 43.0 | 260 | 113 | 9.4 | 14.1 | 208.9 | 53.30 | 442.0 | 51.00 |
| INP 280 | 47.9 | 49.0 | 280 | 119 | 10.1 | 15.2 | 225.1 | 61.00 | 542.0 | 61.20 |
| INP 300 | 54.2 | 56.0 | 300 | 125 | 10.8 | 16.2 | 241.6 | 69.00 | 653.0 | 72.20 |
| INP 320 | 61.0 | 63.0 | 320 | 131 | 11.5 | 17.3 | 257.9 | 77.70 | 782.0 | 84.70 |
| INP 340 | 68.0 | 70.0 | 340 | 137 | 12.2 | 18.3 | 274.3 | 86.70 | 923.0 | 98.40 |
| INP 360 | 76.1 | 78.0 | 360 | 143 | 13.0 | 19.5 | 290.2 | 97.00 | 1090.0 | 114.00 |
| INP 400 | 92.4 | 95.0 | 400 | 155 | 14.4 | 21.6 | 322.9 | 118.00 | 1460.0 | 149.00 |
| INP 450 | 115.0 | 118.0 | 450 | 170 | 16.2 | 24.3 | 363.6 | 147.00 | 2040.0 | 203.00 |
| INP 500 | 141.0 | 145.0 | 500 | 185 | 18.0 | 27.0 | 404.3 | 179.00 | 2750.0 | 268.00 |
| INP 550 | 166.0 | 171.0 | 550 | 200 | 19.0 | 30.0 | 445.6 | 212.00 | 3610.0 | 349.00 |
