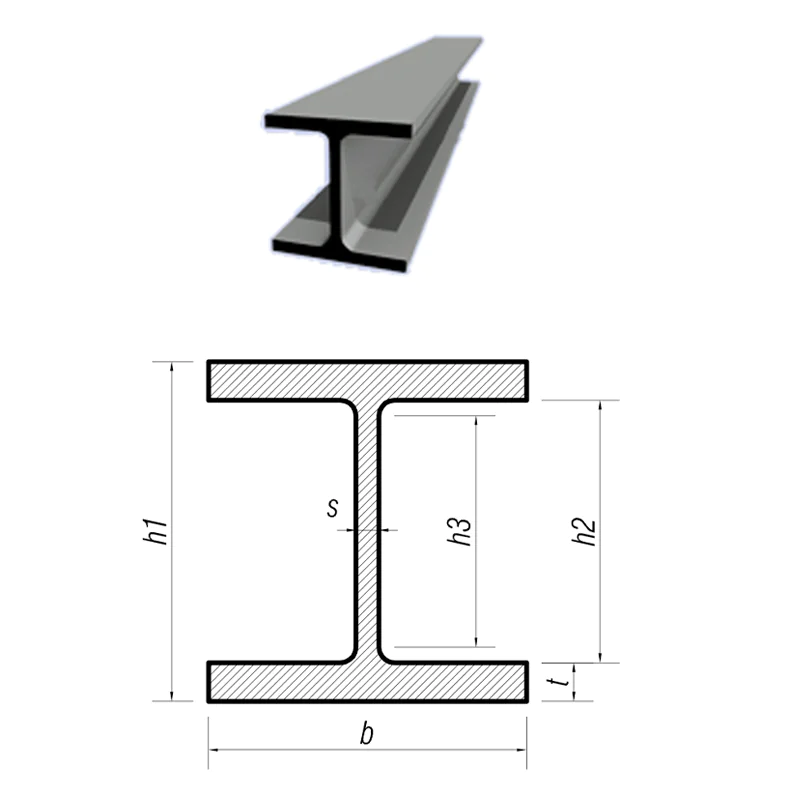

HEM PROFILE WITH DIMENSIONS FROM 100 TO 1000 MM
Technical characteristics:
Manufacturing standard: according to EN 10365
Manufacturing tolerances: according to EN 10034
Steel used: according to DIN 17100 / EN 10025
Surface appearance: according to EN 10163-3, C
Quality certificate: according to EN 10204 – type 2.2 or 3.1B
Standard Manufacturing / Delivery Dimensions
| Designation | Weight | Dimensions (mm) | Section | Section Modulus | |||||||
| kg / ml | cm² | cm³ | |||||||||
| Theoretical | Commercial | h1 | b | s | t | h2 | h3 | F | Wx | Wy | |
| HEM 100 | 41.8 | 42.8 | 120 | 106 | 12 | 20 | 80 | 56 | 53.2 | 190.0 | 75.3 |
| HEM 120 | 52.1 | 53.4 | 140 | 126 | 12.5 | 21 | 98 | 74 | 66.4 | 288.0 | 112.0 |
| HEM 140 | 63.2 | 64.8 | 160 | 146 | 13 | 22 | 116 | 92 | 80.6 | 411.0 | 157.0 |
| HEM 160 | 76.2 | 78.1 | 180 | 166 | 14 | 23 | 134 | 104 | 97.1 | 566.0 | 212.0 |
| HEM 180 | 88.9 | 91.1 | 200 | 186 | 14.5 | 24 | 152 | 122 | 113.0 | 748.0 | 277.0 |
| HEM 200 | 103.0 | 106.0 | 220 | 206 | 15 | 25 | 170 | 134 | 131.0 | 967.0 | 354.0 |
| HEM 220 | 117.0 | 120.0 | 240 | 226 | 15.5 | 26 | 188 | 152 | 149.0 | 1220.0 | 444.0 |
| HEM 240 | 157.0 | 160.0 | 270 | 248 | 18 | 32 | 206 | 164 | 200.0 | 1800.0 | 657.0 |
| HEM 260 | 172.0 | 176.0 | 290 | 268 | 18 | 32.5 | 225 | 177 | 220.0 | 2160.0 | 780.0 |
| HEM 280 | 189.0 | 194.0 | 310 | 288 | 18.5 | 33 | 244 | 196 | 240.0 | 2550.0 | 914.0 |
| HEM 300 | 238.0 | 244.0 | 340 | 310 | 21 | 39 | 262 | 208 | 303.0 | 3480.0 | 1250.0 |
| HEM 320 | 245.0 | 251.0 | 359 | 309 | 21 | 40 | 279 | 225 | 312.0 | 3800.0 | 1280.0 |
| HEM 340 | 248.0 | 254.0 | 377 | 309 | 21 | 40 | 297 | 243 | 316.0 | 4050.0 | 1280.0 |
| HEM 360 | 250.0 | 256.0 | 395 | 308 | 21 | 40 | 315 | 261 | 319.0 | 4300.0 | 1270.0 |
| HEM 400 | 256.0 | 262.0 | 432 | 307 | 21 | 40 | 352 | 298 | 326.0 | 4820.0 | 1260.0 |
| HEM 450 | 263.0 | 270.0 | 478 | 307 | 21 | 40 | 398 | 344 | 335.0 | 5500.0 | 1260.0 |
| HEM 500 | 270.0 | 277.0 | 524 | 306 | 21 | 40 | 444 | 390 | 344.0 | 6180.0 | 1250.0 |
| HEM 550 | 278.0 | 285.0 | 572 | 306 | 21 | 40 | 492 | 438 | 354.0 | 6920.0 | 1250.0 |
| HEM 600 | 285.0 | 292.0 | 620 | 305 | 21 | 40 | 540 | 486 | 364.0 | 7660.0 | 1240.0 |
| HEM 650 | 293.0 | 300.0 | 668 | 305 | 21 | 40 | 588 | 534 | 374.0 | 8430.0 | 1240.0 |
| HEM 700 | 301.0 | 309.0 | 716 | 304 | 21 | 40 | 636 | 582 | 383.0 | 9200.0 | 1240.0 |
| HEM 800 | 317.0 | 325.0 | 814 | 303 | 21 | 40 | 634 | 674 | 404.0 | 10870.0 | 1230.0 |
| HEM 900 | 333.0 | 341.0 | 910 | 302 | 21 | 40 | 830 | 770 | 424.0 | 12540.0 | 1220.0 |
| HEM 1000 | 349.0 | 358.0 | 1008 | 302 | 21 | 40 | 928 | 868 | 444.0 | 14330.0 | 1220.0 |
