HEB PROFILE WITH DIMENSIONS FROM 100 TO 1000 MM
Technical characteristics:
Manufacturing standard: according to EN 10365
Manufacturing tolerances: according to EN 10034
Steel used: according to DIN 17100 / EN 10025
Surface appearance: according to EN 10163-3, C
Quality certificate: according to EN 10204 – type 2.2 or 3.1B
Standard Manufacturing / Delivery Dimensions
| Designation | Weight | Dimensions (mm) | Section | Section Modulus | |||||||
| kg / ml | cm² | cm³ | |||||||||

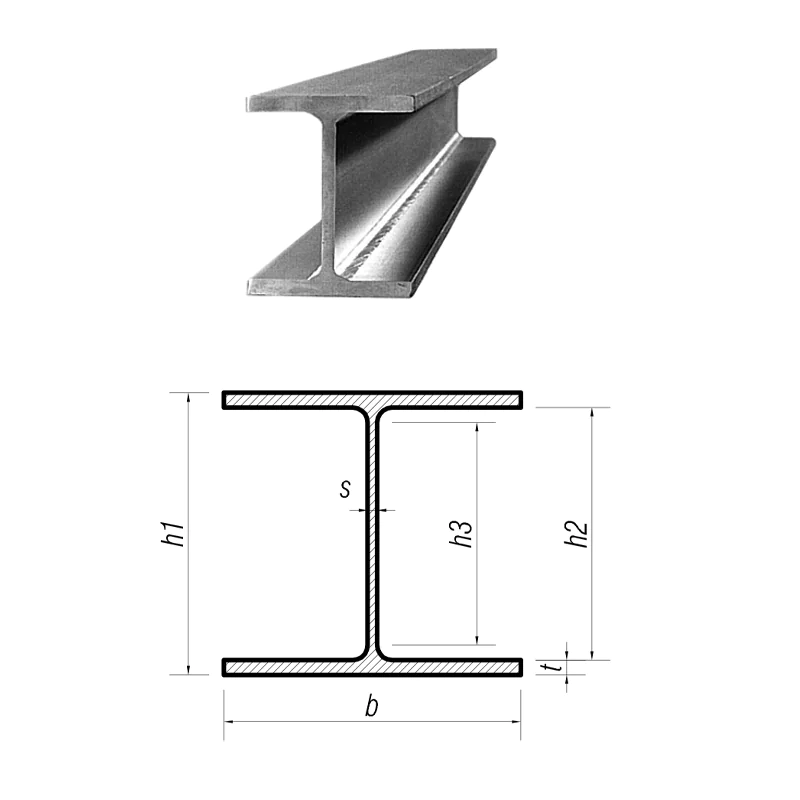

| Theoretical | Commercial | h1 | b | s | t | h2 | h3 | F | Wx | Wy | |
| HEB 100 | 20.4 | 20.9 | 100 | 100 | 6.0 | 10.0 | 80 | 56 | 26.04 | 89.9 | 33.5 |
| HEB 120 | 26.7 | 27.4 | 120 | 120 | 6.5 | 11.0 | 98 | 74 | 34.01 | 144.1 | 52.9 |
| HEB 140 | 33.7 | 34.5 | 140 | 140 | 7.0 | 12.0 | 116 | 92 | 42.96 | 215.6 | 78.5 |
| HEB 160 | 42.6 | 43.7 | 160 | 160 | 8.0 | 13.0 | 134 | 104 | 54.25 | 311.5 | 111.2 |
| HEB 180 | 51.2 | 52.5 | 180 | 180 | 8.5 | 14.0 | 152 | 122 | 65.25 | 425.7 | 151.4 |
| HEB 200 | 61.3 | 63.0 | 200 | 200 | 9.0 | 15.0 | 170 | 134 | 78.08 | 569.6 | 200.3 |
| HEB 220 | 71.5 | 73.0 | 220 | 220 | 9.5 | 16.0 | 188 | 152 | 91.04 | 735.5 | 258.5 |
| HEB 240 | 83.2 | 85.0 | 240 | 240 | 10.0 | 17.0 | 206 | 164 | 106.00 | 938.3 | 326.9 |
| HEB 260 | 93.0 | 95.0 | 260 | 260 | 10.0 | 17.5 | 225 | 177 | 118.40 | 1148.0 | 395.0 |
| HEB 280 | 103.0 | 106.0 | 280 | 280 | 10.5 | 18.0 | 244 | 196 | 131.40 | 1376.0 | 471.0 |
| HEB 300 | 117.0 | 120.0 | 300 | 300 | 11.0 | 19.0 | 262 | 208 | 149.10 | 1678.0 | 570.9 |
| HEB 320 | 127.0 | 130.0 | 320 | 300 | 11.5 | 20.5 | 279 | 225 | 161.30 | 1926.0 | 615.9 |
| HEB 340 | 134.0 | 137.0 | 340 | 300 | 12.0 | 21.5 | 297 | 243 | 170.90 | 2156.0 | 646.0 |
| HEB 360 | 142.0 | 146.0 | 360 | 300 | 12.5 | 22.5 | 315 | 261 | 180.60 | 2400.0 | 676.1 |
| HEB 400 | 155.0 | 159.0 | 400 | 300 | 13.5 | 24.0 | 352 | 298 | 197.80 | 2884.0 | 721.3 |
| HEB 450 | 171.0 | 175.0 | 450 | 300 | 14.0 | 26.0 | 398 | 344 | 218.00 | 3551.0 | 781.4 |
| HEB 500 | 187.0 | 192.0 | 500 | 300 | 14.5 | 28.0 | 444 | 390 | 238.60 | 4287.0 | 841.6 |
| HEB 550 | 199.0 | 204.0 | 550 | 300 | 15.0 | 29.0 | 492 | 438 | 254.10 | 4971.0 | 871.8 |
| HEB 600 | 212.0 | 217.0 | 600 | 300 | 15.5 | 30.0 | 540 | 486 | 270.00 | 5701.0 | 902.0 |
| HEB 650 | 225.0 | 231.0 | 650 | 300 | 16.0 | 31.0 | 588 | 534 | 286.30 | 6480.0 | 932.3 |
| HEB 700 | 241.0 | 247.0 | 700 | 300 | 17.0 | 32.0 | 636 | 582 | 306.40 | 7340.0 | 962.7 |
| HEB 800 | 262.0 | 269.0 | 800 | 300 | 17.5 | 33.0 | 634 | 674 | 334.20 | 8977.0 | 993.6 |
| HEB 900 | 291.0 | 298.0 | 900 | 300 | 18.5 | 35.0 | 830 | 770 | 371.30 | 10980.0 | 1054.0 |
| HEB 1000 | 314.0 | 322.0 | 1000 | 300 | 19.0 | 36.0 | 928 | 868 | 400.00 | 12890.0 | 1090.0 |
