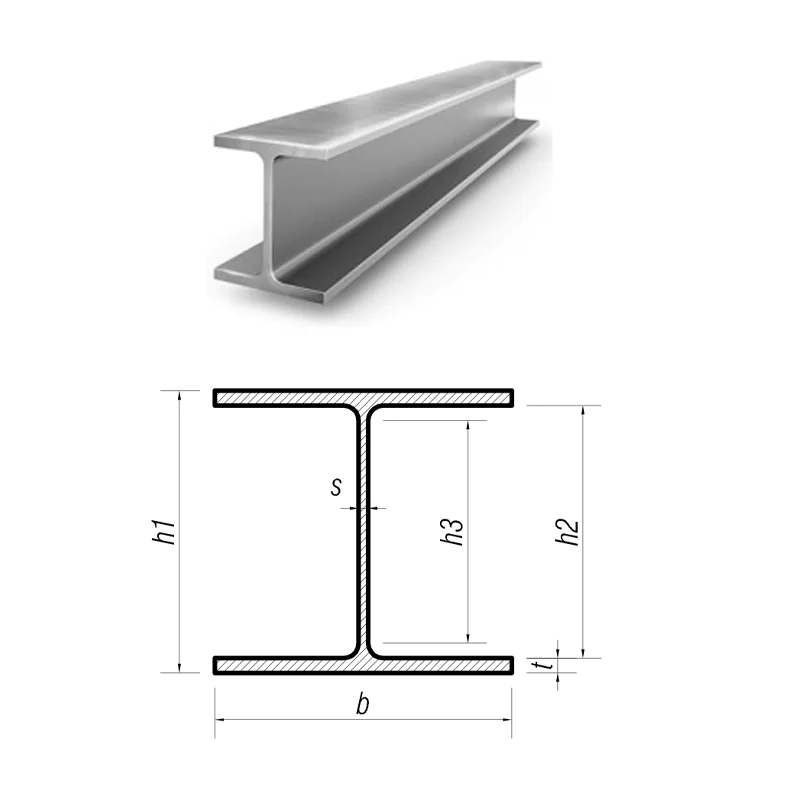

HEA PROFILE WITH DIMENSIONS FROM 100 TO 1000 MM
Technical characteristics:
Manufacturing standard: according to EN 10365
Manufacturing tolerances: according to EN 10034
Steel used: according to DIN 17100 / EN 10025
Surface appearance: according to EN 10163-3, C
HEA profile quality certificate: according to EN 10204 – type 2.2 or 3.1B
Standard Manufacturing / Delivery Dimensions
| Designation | Weight | Dimensions (mm) | Section | Section Modulus | |||||||
| kg / ml | cm² | cm³ | |||||||||
| Theoretical | Commercial | h1 | b | s | t | h2 | h3 | F | Wx | Wy | |
| HEA 100 | 16.7 | 17.1 | 96 | 100 | 5.0 | 8.0 | 80 | 56 | 21.24 | 72.76 | 26.7 |
| HEA 120 | 19.9 | 20.4 | 114 | 120 | 5.0 | 8.0 | 98 | 74 | 25.34 | 106.3 | 38.4 |
| HEA 140 | 24.7 | 25.3 | 133 | 140 | 5.5 | 8.5 | 116 | 92 | 31.42 | 155.4 | 55.6 |
| HEA 160 | 30.4 | 31.2 | 152 | 160 | 6.0 | 9.0 | 134 | 104 | 38.77 | 220.1 | 76.9 |
| HEA 180 | 35.5 | 36.4 | 171 | 180 | 6.0 | 9.5 | 152 | 122 | 45.25 | 293.6 | 102.7 |
| HEA 200 | 42.3 | 43.0 | 190 | 200 | 6.5 | 10.0 | 170 | 134 | 53.83 | 388.6 | 133.6 |
| HEA 220 | 50.5 | 52.0 | 210 | 220 | 7.0 | 11.0 | 188 | 152 | 64.34 | 515.2 | 177.7 |
| HEA 240 | 60.3 | 62.0 | 230 | 240 | 7.5 | 12.0 | 206 | 164 | 76.84 | 675.1 | 230.7 |
| HEA 260 | 68.2 | 70.0 | 250 | 260 | 7.5 | 12.5 | 225 | 177 | 86.82 | 836.4 | 282.1 |
| HEA 280 | 76.4 | 78.0 | 270 | 280 | 8.0 | 13.0 | 244 | 196 | 97.26 | 1013.0 | 340.2 |
| HEA 300 | 88.3 | 90.0 | 290 | 300 | 8.5 | 14.0 | 262 | 208 | 112.50 | 1260.0 | 420.6 |
| HEA 320 | 97.6 | 100.0 | 310 | 300 | 9.0 | 15.5 | 279 | 225 | 124.4 | 1479.0 | 465.7 |
| HEA 340 | 105.0 | 108.0 | 330 | 300 | 9.5 | 16.5 | 297 | 243 | 133.50 | 1678.0 | 495.7 |
| HEA 360 | 112.0 | 115.0 | 350 | 300 | 10.0 | 17.5 | 315 | 261 | 142.80 | 1891.0 | 525.8 |
| HEA 400 | 125.0 | 128.0 | 390 | 300 | 11.0 | 19.0 | 352 | 298 | 159.00 | 2311.0 | 570.9 |
| HEA 450 | 140.0 | 143.0 | 440 | 300 | 11.5 | 21.0 | 398 | 344 | 178.00 | 2896.0 | 631.0 |
| HEA 500 | 155.0 | 159.0 | 490 | 300 | 12.0 | 23.0 | 444 | 390 | 197.50 | 3550.0 | 691.1 |
| HEA 550 | 166.0 | 170.0 | 540 | 300 | 12.5 | 24.0 | 492 | 438 | 211.80 | 4146.0 | 721.3 |
| HEA 600 | 178.0 | 182.0 | 590 | 300 | 13.0 | 25.0 | 540 | 486 | 226.50 | 4787.0 | 751.4 |
| HEA 650 | 190.0 | 195.0 | 640 | 300 | 13.5 | 26.0 | 588 | 534 | 241.60 | 5474.0 | 781.6 |
| HEA 700 | 204.0 | 210.0 | 690 | 300 | 14.5 | 27.0 | 636 | 582 | 260.50 | 6241.0 | 811.9 |
| HEA 800 | 224.0 | 230.0 | 790 | 300 | 15.0 | 28.0 | 634 | 674 | 285.80 | 7682.0 | 842.6 |
| HEA 900 | 252.0 | 258.0 | 890 | 300 | 16.0 | 30.0 | 830 | 770 | 320.50 | 9485.0 | 903.2 |
| HEA 1000 | 272.0 | 278.0 | 990 | 300 | 16.5 | 31.0 | 928 | 868 | 346.80 | 11190.0 | 933.6 |
