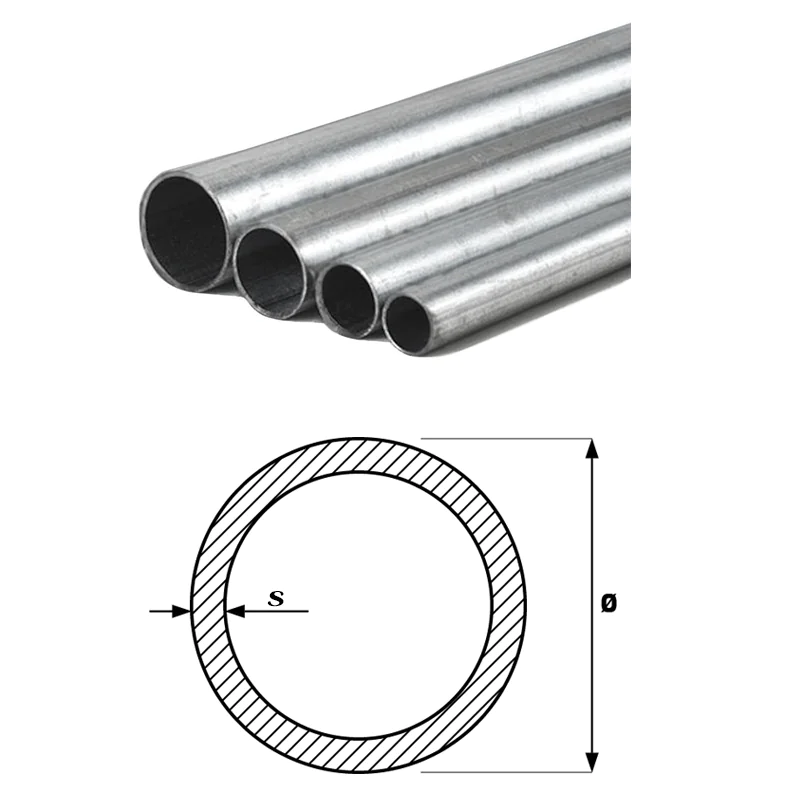

GALVANIZED TUBE WITH DIMENSIONS FROM 17.1 TO 114.3 MM
Technical characteristics:
– Manufacturing standards: EN 10255, ISO 65
– Steel quality: S 235, S 275
– Manufacturing lengths: 6 m
– Galvanization according to: EN 10240
– Delivery: 700-2,000 kg bundles
Standard Manufacturing / Delivery Dimensions
| Dimensions | Galvanized Pipes | ||
| External | Thickness | Weight | |
| Diameter | (s) mm | kg/ml | |
| mm | inch | ||
| 17.1 | 3/8” | 2.3 | 0.84 |
| 21.3 | 1/2” | 2.3 | 1.15 |
| 2.6 | 1.28 | ||
| 26.9 | 3/4” | 2.3 | 1.48 |
| 2.6 | 1.65 | ||
| 33.7 | 1” | 2.9 | 2.32 |
| 3.2 | 2.53 | ||
| 42.4 | 1 1/4” | 2.9 | 2.97 |
| 3.2 | 3.25 | ||
| 48.3 | 1 1/2” | 2.9 | 3.41 |
| 3.2 | 3.73 | ||
| 60.3 | 2” | 3.2 | 4.71 |
| 3.6 | 5.24 | ||
| 76.1 | 2 1/2” | 3.2 | 6.00 |
| 3.6 | 6.70 | ||
| 88.9 | 3” | 3.6 | 7.87 |
| 4 | 8.69 | ||
| 114.3 | 4” | 4 | 11.22 |
| 4.5 | 12.61 | ||
