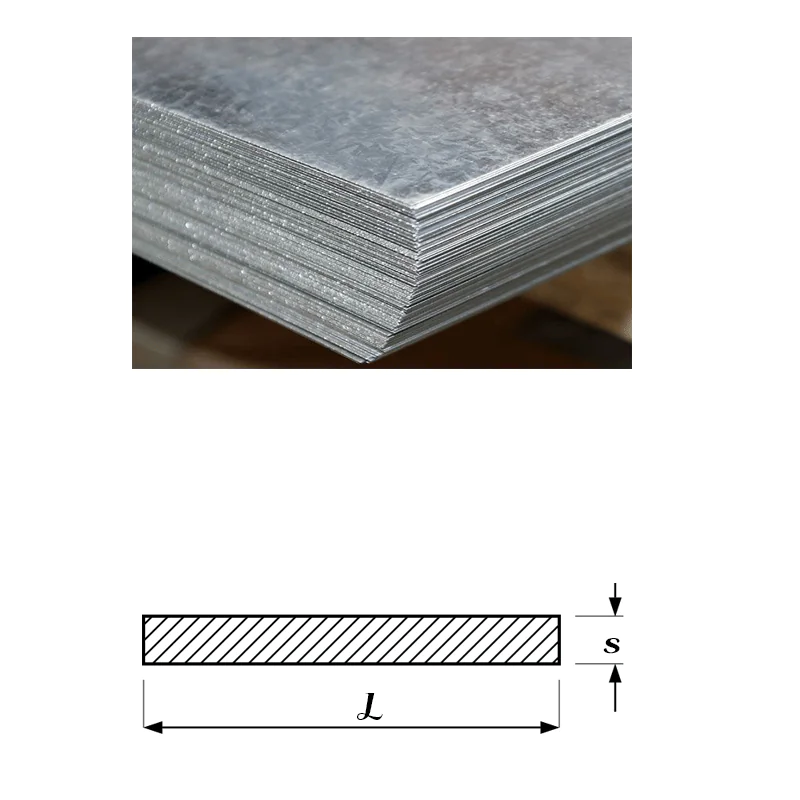

GALVANIZED SHEET METAL WITH DIMENSIONS FROM 0.40 TO 5 MM
Technical characteristics:
Delivery standard: EN 10346
The standard specifies the technical delivery conditions for continuously hot-dip coated flat steel products. It applies to strips of all widths, sheets (width ≥ 600 mm), and slit strips cut to length (width < 600 mm).
Manufacturing tolerances for galvanized sheet metal: EN 10143 / DIN 59232
Standard Manufacturing / Delivery Dimensions
| Thickness | Weight | ||
| (s) mm | Kg/sqm | Kg/sheet | |
| 3.00 | 25.50 | 229.50 | |
| 4.00 | 34.00 | 306.00 | |
| 5.00 | 42.50 | 382.50 | |
| 6.00 | 51.00 | 459.00 | |
| 8.00 | 68.00 | 612.00 | |
| 10.00 | 85.00 | 765.00 | |
