EQUAL ANGLE STEEL 20 - 200 mm

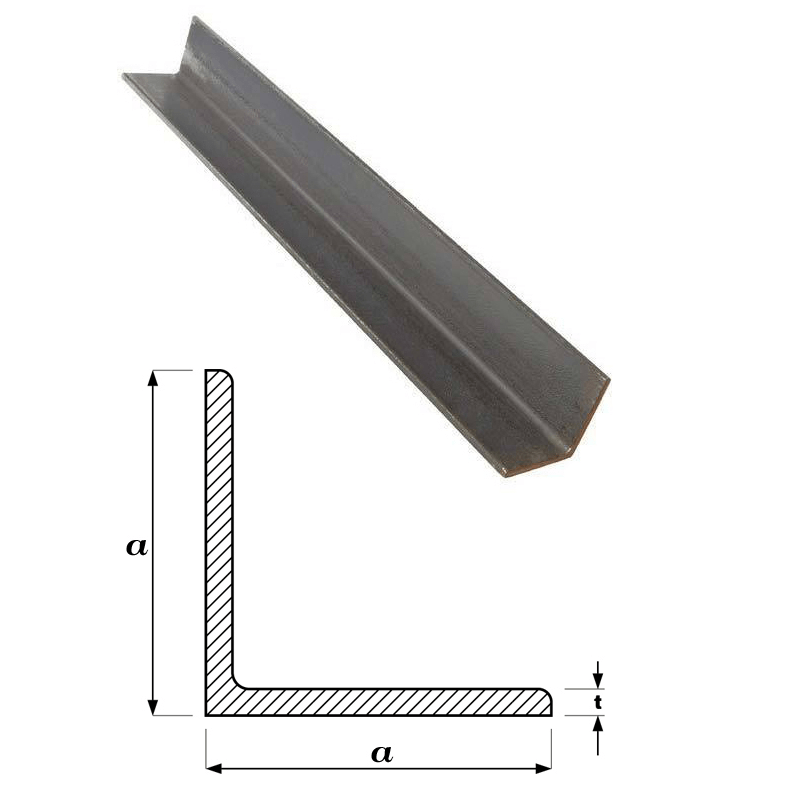

Technical characteristics for angle steel:

Manufacturing dimensions according to: EN 10056-1
Material quality: according to DIN 17100 / EN 10025
Manufacturing tolerances according to EN 10056-2
Surface appearance: according to EN 10163-3
Quality certificate for equal leg angle: according to EN 10204 – type 2.2 or 3.1B
Manufacturing lengths: 6 m, 12 m.

Standard Manufacturing / Delivery Dimensions

Leg Width (a x a)	Thickness (s)	Weight / ml	Radius r1	Radius r2	Section Area	Section Modulus	Axes	Moment of Inertia			Radius of Gyration
Leg Width (a x a)	Thickness (s)	Weight / ml	Radius r1	Radius r2	Section Area	Section Modulus	Cx = Cy	x-x = y-y	u-u	v-v	x-x = y-y	u-u	v-v
mm	mm	kg	mm	mm	cm²	cm³	cm	cm⁴	cm⁴	cm⁴	cm	cm	cm
20 x 20	3	0.88	3.5	2.0	1.12	0.28	0.60	0.39	0.61	0.16			0.38
25 x 25	3	1.11	3.5	2.0	1.42	0.45	0.72	0.80	1.26	0.33	0.75	0.94	0.48
	4	1.45	3.5	2.0	1.85	0.58	0.76	1.01	1.60	0.43	0.74	0.93	0.48
	5	1.77	3.5	2.0	2.26	0.71	0.80	1.20	1.87	0.52	0.73	0.91	0.48
30 x 30	3	1.36	5.0	2.5	1.74	0.65	0.84	1.40	2.23	0.58	0.90	1.13	0.58
	4	1.78	5.0	2.5	2.27	0.85	0.88	1.80	2.85	0.75	0.89	1.12	0.58
	5	2.18	5.0	2.5	2.78	1.04	0.92	2.16	3.41	0.92	0.88	1.11	0.57
35 x 35	4	2.09	5.0	2.5	2.67	1.18	1.00	2.95	4.69	1.22	1.05	1.33	0.68
40 x 40	4	2.42	6.0	3.0	3.08	1.55	1.12	4.47	7.09	1.85	1.21	1.52	0.78
	5	2.97	6.0	3.0	3.79	1.91	1.16	5.43	8.60	2.26	1.20	1.51	0.77
	6	3.52	6.0	3.0	4.48	2.26	1.20	6.31	9.98	2.65	1.19	1.49	0.77
45 x 45	4	2.74	7.0	3.5	3.49	1.97	1.23	6.43	10.20	2.67	1.36	1.71	0.87
	5	3.38	7.0	3.5	4.30	2.43	1.28	7.84	12.40	3.25	1.35	1.70	0.87
	6	4.00	7.0	3.5	5.09	2.88	1.32	9.16	14.50	3.82	1.34	1.69	0.87
50 x 50	5	3.77	7.0	3.5	4.80	3.05	1.40	11.00	17.40	4.54	1.51	1.90	0.97
	6	4.47	7.0	3.5	5.69	3.61	1.45	12.80	20.40	5.33	1.50	1.89	0.97
	7	5.82	7.0	3.5	7.41	4.68	1.52	16.30	25.70	6.87	1.48	1.86	0.96
55 x 55	5	4.18	8.0	4.0	5.32	3.70	1.52	14.71	23.37	6.06	1.66	2.10	1.07
55 x 55	6	4.95	8.0	4.0	6.31	4.39	1.56	17.29	27.44	7.13	1.66	2.09	1.06
60 x 60	5	4.57	8.0	4.0	5.82	4.45	1.64	19.40	30.70	8.02	1.82	2.30	1.17
	6	5.42	8.0	4.0	6.91	5.29	1.69	22.80	36.20	9.43	1.82	2.29	1.17
	8	7.09	8.0	4.0	9.03	6.89	1.77	29.20	46.20	12.10	1.80	2.26	1.16
	10	8.69	8.0	4.0	11.10	8.41	1.85	34.90	55.10	14.80	1.78	2.23	1.16
70 x 70	6	6.38	9.0	4.5	8.13	7.27	1.93	36.90	58.50	15.20	2.13	2.68	1.37
	8	8.36	9.0	4.5	10.60	9.52	2.01	47.50	75.30	19.70	2.11	2.66	1.36
	10	10.30	9.0	4.5	13.10	11.70	2.09	57.20	90.50	23.90	2.09	2.63	1.35
80 x 80	6	7.34	10.0	5.0	9.35	9.57	2.17	55.80	88.50	23.10	2.44	3.08	1.57
	8	9.63	10.0	5.0	12.30	12.60	2.26	72.20	115.00	29.80	2.43	3.06	1.56
	10	11.90	10.0	5.0	15.10	15.40	2.34	87.50	139.00	36.30	2.41	3.03	1.55
90 x 90	6	8.30	11.0	5.5	10.60	12.20	2.41	80.30	127.00	33.30	2.76	3.47	1.78
	8	10.90	11.0	5.5	13.90	16.10	2.50	104.00	166.00	43.10	2.74	3.45	1.76
	10	13.40	11.0	5.5	17.10	19.80	2.58	127.00	201.00	52.60	2.72	3.42	1.76
	12	15.90	11.0	5.5	20.30	23.30	2.66	148.00	234.00	61.70	2.70	3.40	1.75
100×100	8	12.20	12.0	6.0	15.50	19.90	2.74	145.00	230.00	59.80	3.06	3.85	1.96
	12	17.80	12.0	6.0	22.70	29.10	2.90	207.00	328.00	85.70	3.02	3.80	1.94
	15	21.90	12.0	6.0	27.90	35.60	3.02	249.00	393.00	104.00	2.98	3.75	1.93
120×120	8	14.70	13.0	6.5	18.70	29.10	3.23	255.00	405.00	105.00	3.69	4.65	2.37
	10	18.20	13.0	6.5	23.20	36.00	3.31	313.00	497.00	129.00	3.67	4.63	2.36
	12	21.60	13.0	6.5	27.50	42.70	3.40	368.00	584.00	151.00	3.65	4.60	2.35
	15	26.60	13.0	6.5	33.90	52.40	3.51	445.00	705.00	185.00	3.62	4.56	2.33
150×150	10	23.00	16.0	8.0	29.30	56.90	4.03	624.00	991.00	258.00	4.62	5.82	2.97
	12	27.30	16.0	8.0	34.80	67.70	4.12	737.00	1170.00	303.00	4.60	5.80	2.95
	15	33.80	16.0	8.0	43.00	83.50	4.25	898.00	1430.00	370.00	4.57	5.76	2.93
	18	40.10	16.0	8.0	51.00	98.70	4.37	1050.00	1670.00	435.00	4.54	5.71	2.92
200×200	16	48.50	18.0	9.0	61.80	162.00	5.52	2340.00	3720.00	959.00	6.16	7.76	3.94
	18	54.20	18.0	9.0	69.10	181.00	5.60	2600.00	4130.00	1070.00	6.13	7.73	3.93
	20	59.90	18.0	9.0	76.30	199.00	5.68	2850.00	4530.00	1170.00	6.11	7.70	3.92
	24	71.10	18.0	9.0	90.60	235.00	5.84	3330.00	5280.00	1380.00	6.06	7.64	3.90
