DRAWN TUBE WITH DIMENSIONS FROM 33.4 TO 711 MM
Technical characteristics:
Delivery standards according to:
EN 10210 – 1
EN 10216 – 1. Seamless steel tubes for pressure purposes. Technical delivery conditions. Part 1: Non-alloy steel tubes with specified room temperature properties.
EN 10297 – 1. The standard specifies the technical delivery conditions for seamless circular tubes made of non-alloy and alloy steel, for use in general mechanical engineering and machine construction.
Manufacturing tolerances according to:
EN 10210 – 2. The standard specifies the tolerances, dimensions, and characteristics of hot-finished hollow sections with circular, square, rectangular, and elliptical cross-sections, used in construction.
Steel quality: S355J2H, St52.0, Grade A, Grade B
Quality certificate: according to EN 10204 type 2.2 or 3.1B
Manufacturing lengths for drawn tube: between 4 and 12 meters.

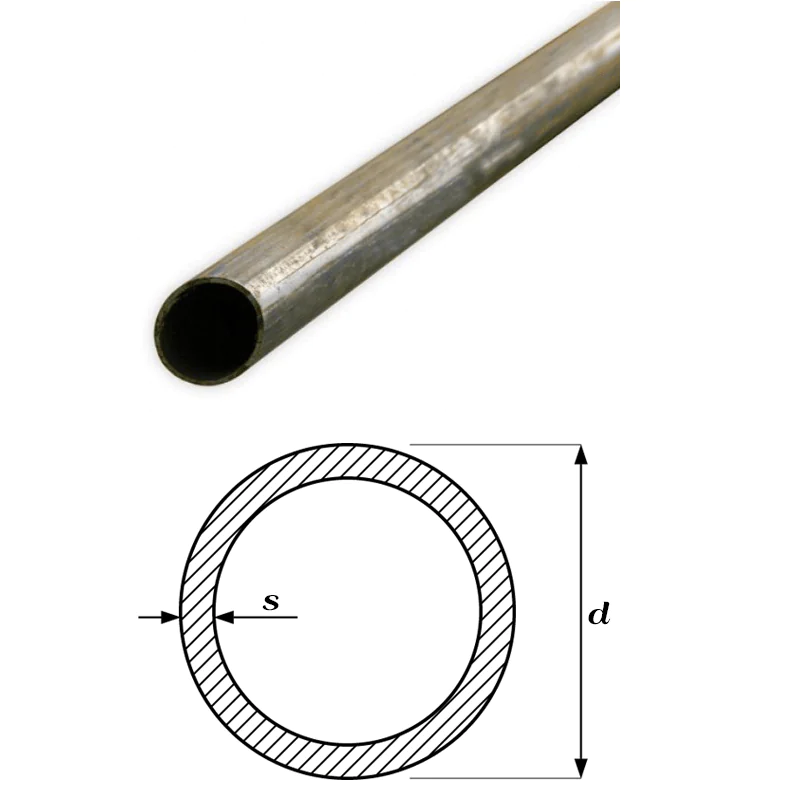

Standard Manufacturing / Delivery Dimensions
| Drawn Tube | Thickness(s) mm | |||||||||||||||||
| 2.9 | 3.2 | 3.6 | 4 | 4.4 | 4.9 | 5.2 | 5.6 | 6 | 6.4 | 7.1 | 7.9 | 8.7 | 9.5 | 10.3 | 11.1 | 11.9 | 12.7 | |
| Diameter(d) mm | Weight kg/ml | |||||||||||||||||
| 33.4 | 2.18 | 2.38 | 2.65 | 2.90 | 3.15 | 3.44 | 3.62 | 3.84 | 4.05 | 4.26 | 4.61 | 4.97 | 5.30 | 5.60 | ||||
| 42.2 | 2.81 | 3.08 | 3.43 | 3.77 | 4.10 | 4.51 | 4.74 | 5.05 | 5.36 | 5.65 | 6.15 | 6.68 | 7.19 | 7.66 | 8.10 | 8.51 | 8.89 | 9.24 |
| 48.3 | 3.25 | 3.56 | 3.97 | 4.37 | 4.76 | 5.24 | 5.53 | 5.90 | 6.26 | 6.61 | 7.21 | 7.87 | 8.50 | 9.09 | 9.65 | 10.18 | 10.68 | 11.15 |
| 60.3 | 4.51 | 5.03 | 5.55 | 6.07 | 6.69 | 7.07 | 7.55 | 8.03 | 8.51 | 9.32 | 10.21 | 11.07 | 11.90 | 12.70 | 13.47 | 14.20 | 14.91 | |
| 73 | 5.51 | 6.16 | 6.81 | 7.44 | 8.23 | 8.69 | 9.31 | 9.91 | 10.51 | 11.54 | 12.68 | 13.80 | 14.88 | 15.93 | 16.94 | 17.93 | 18.89 | |
| 88.9 | 6.76 | 7.57 | 8.38 | 9.17 | 10.15 | 10.73 | 11.50 | 12.27 | 13.02 | 14.32 | 15.78 | 17.21 | 18.60 | 19.97 | 21.30 | 22.60 | 23.87 | |
| 101.6 | 7.77 | 8.70 | 9.63 | 10.55 | 11.69 | 12.36 | 13.26 | 14.15 | 15.03 | 16.55 | 18.26 | 19.93 | 21.58 | 23.19 | 24.77 | 26.32 | 27.84 | |
| 114.3 | 10.88 | 11.93 | 13.22 | 13.99 | 15.01 | 16.03 | 17.03 | 18.77 | 20.73 | 22.66 | 24.55 | 26.42 | 28.55 | 30.05 | 31.82 | |||
| 141.3 | 14.86 | 16.48 | 17.45 | 18.74 | 20.02 | 21.29 | 23.50 | 25.99 | 28.45 | 30.88 | 33.28 | 35.64 | 37.98 | 40.28 | ||||
| 168.3 | 17.78 | 19.75 | 20.92 | 22.47 | 24.02 | 25.55 | 28.23 | 31.25 | 34.24 | 37.20 | 40.13 | 43.03 | 45.90 | 48.73 | ||||
| 219.1 | 25.88 | 27.43 | 29.49 | 31.53 | 33.57 | 37.12 | 41.15 | 45.14 | 49.11 | 53.04 | 56.94 | 60.81 | 64.64 | |||||
| 273.1 | 39.52 | 42.09 | 46.58 | 51.67 | 56.73 | 61.76 | 66.75 | 71.72 | 76.65 | 81.56 | ||||||||
| 323.9 | 50.11 | 55.47 | 61.56 | 67.63 | 73.66 | 79.66 | 85.63 | 91.56 | 97.47 | |||||||||
| 355.6 | 61.02 | 67.74 | 74.43 | 81.09 | 87.71 | 94.30 | 100.87 | 107.40 | ||||||||||
| 406.4 | 77.64 | 85.33 | 92.99 | 100.61 | 108.21 | 115.77 | 123.31 | |||||||||||
| 419.1 | 80.11 | 88.05 | 95.96 | 103.84 | 111.69 | 119.50 | 127.28 | |||||||||||
| 425.5 | 81.36 | 89.43 | 97.46 | 105.47 | 113.44 | 121.38 | 129.29 | |||||||||||
| 431.8 | 82.59 | 90.78 | 98.94 | 107.07 | 115.16 | 123.23 | 131.26 | |||||||||||
| 457 | 87.50 | 96.19 | 104.84 | 113.47 | 122.06 | 130.62 | 139.16 | |||||||||||
| 469.9 | 98.95 | 107.86 | 116.74 | 125.59 | 134.41 | 143.20 | ||||||||||||
| 473.1 | 99.64 | 108.61 | 117.56 | 126.47 | 135.35 | 144.20 | ||||||||||||
| 508 | 107.13 | 116.79 | 126.42 | 136.02 | 145.59 | 155.13 | ||||||||||||
| 520.7 | 109.85 | 119.77 | 129.65 | 139.50 | 149.32 | 159.11 | ||||||||||||
| 533.4 | 112.58 | 122.74 | 132.87 | 142.98 | 153.05 | 163.08 | ||||||||||||
| 559 | 128.74 | 139.38 | 149.98 | 156.56 | 171.10 | |||||||||||||
| 571.5 | 131.67 | 142.55 | 153.41 | 164.23 | 175.02 | |||||||||||||
| 610 | 140.69 | 152.33 | 163.94 | 175.53 | 187.07 | |||||||||||||
| 622.3 | 143.57 | 155.46 | 167.31 | 179.14 | 190.93 | |||||||||||||
| 660 | 152.40 | 165.03 | 177.63 | 190.20 | 202.74 | |||||||||||||
| 711 | 177.99 | 191.59 | 205.17 | 218.71 | ||||||||||||||
