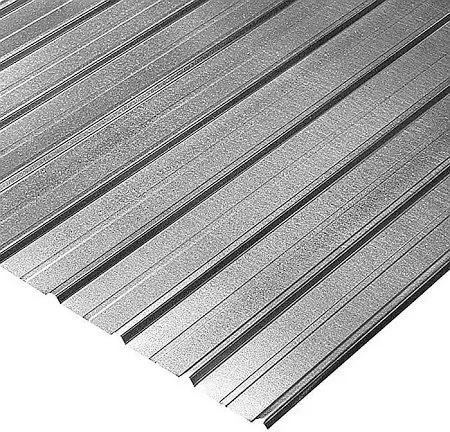

CORRUGATED WALL SHEET WITH THICKNESS FROM 0.5 TO 0.9 MM
Advantages of corrugated galvanized sheet for walls:
CHEAP AND FAST
Corrugated galvanized sheet is the cheapest and fastest option for constructing walls or fences, without neglecting the aesthetic and functional aspects.
HIGH DURABILITY OVER TIME
The corrosion resistance of galvanized sheet depends on the aggressiveness of the environment and the type and thickness of the protective treatment applied. Standard galvanization is performed with 100 g/m² of Zn, which corresponds to a Zn layer thickness of 7 µm on each side of the sheet.
Standard Manufacturing / Delivery Dimensions
| Thickness | Weight | Dimensions L x W | |||||||||
| Weight kg/sheet | |||||||||||
| (s) mm | kg/sqm | 1050×1000 | 1050×2000 | 1050×3000 | 1050×4000 | 1050×6000 | 1050×7000 | 1050×9000 | 1050×10000 | 1050×12000 | 1050×13000 |
| 0.5 | 5 | 5 | 10 | 15 | 20 | 30 | 35 | 45 | 50 | 60 | 65 |
| 0.6 | 6 | 6 | 12 | 18 | 24 | 36 | 42 | 54 | 60 | 72 | 78 |
| 0.7 | 7 | 7 | 14 | 21 | 28 | 42 | 49 | 63 | 70 | 84 | 91 |
| 0.8 | 8 | 8 | 16 | 24 | 32 | 48 | 56 | 72 | 80 | 96 | 104 |
| 0.9 | 9 | 9 | 18 | 27 | 36 | 54 | 63 | 81 | 90 | 108 | 117 |
